FLASHING A10 A13 ALLWINNER

FLASH YOUR A10 A13 ALLWINNER TABLET USING LIVESUIT!


Before Flashing, make sure you have tried the other alternatives first such as Recovery ModeWipe Rom Easy and Android Multi Tools. This method is only advisable if all other alternatives didn't work. Such as your USB debugging is not enabled.

Step by Step AllWinner Tablet Flashing Tutorial

1. Charge your Tablet. It must be full charged or not Low Battery.
2. Download your Firmware / Rom corresponding to your Tablet's Model at the AllWinner Rom Section.

3. Download Livesuit 1.11 by clicking here
4. Extract Zip file to your desired location (ex. Desktop)


5. Open LiveSuitPack_1.11.exe from Livesuit Folder


6. Wait for it to self extract then run Livesuit.exe as Admin



7. A pop up will appear asking if you want a guide for a upgrading. Select NO since you're using my guide.


8. Click Select Img then browse for your downloaded ROM / Firmware .img file. Open.


9. Turn off your Tablet then ready your connector.



10. Hold Volume Up button, connect the tablet to your computer then press power button multiple times slowly.

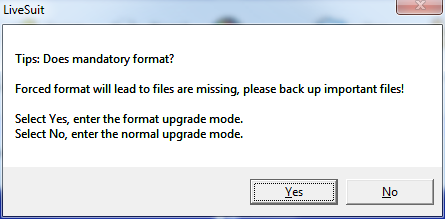

11. Pop up will appear on Livesuit asking if you want mandatory format, just click yes and yes again.





12. Wait until a pop up says "upgrade succeeds"



Warning: Do not turn off your computer or disconnect the cable while it is flashing!

When tablet automatically boots, flashing is finished.

You can now use your Tablet! If it does not boot, hold the power button to turn it on.

45 comments:

  1. Hola, y si mi tablet no tiene boton de volumen, solo ENC. y ESCAPE, como le hago??? alguna idea por favor..

    ReplyDelete
  2. hey dude..i'm a noobie..dealing with this same problem...i followed your instructions but then after no.10 the pop up did not appear.tried it again with no result...computer just says "driver succesfully installed"..is there any other way around?hope you have time to answer..tnx..

    ReplyDelete
    Replies
    1. same here...i got a problem like this...

      Delete
    2. yes i also have same prob the pop are not apear

      Delete
  3. sir pa help po.. pag nag papatch na 3% pa lang error na eto po ung message fail>Upgrade fails : 0x162 ÉÕдʧ°Ü2< pa help naman po pano ma resolve..

    thanks morepower

    ReplyDelete
  4. I've tried this a lot of times and flashed my tablet a lot of times as well.. but now I just can't get it right.. it seems that the thing that will pop up does not appear................... and usb not recognized................. wht should I do?

    ReplyDelete
    Replies
    1. start windows with advanced startup and option 7 driver signature enforcement disabled

      Delete
  5. it booted after following your instructions but my touch screen is not working, so can't use it - do i need a different rom? i used the Nuke one same as you for a A13 Allwinner...

    ReplyDelete
  6. REPLY TO ALL: you got the wrong bootloader... find the correct ROM (img file) for your tablet

    ReplyDelete
  7. my pc wont recognized my tablet its Move T7038... 16 gb... i cant reflash it?

    ReplyDelete
  8. My laptop can't read the contents of my tablet but it can detect 2 new drives. Nikai Evo Allwinner A13

    ReplyDelete
  9. Thanks bro....work for me

    good tutorial

    ReplyDelete
  10. is it ok to use any firmware as long as it uses an a13 chip?hope anybody answer me

    ReplyDelete
  11. guys need help..why the flashing crash after reaching 56% i used the same firmware for my cherry mobile fusion air and this is the board id of my tablet SC3076N_V02_12090800

    can anyone help to fix this problem...thanks...

    ReplyDelete
  12. twas stocked in the jelly bean logo :(

    ReplyDelete
  13. sir when i press volume up button and press power button my pc did not pop up.please guide me for flashing of my tablet

    ReplyDelete
  14. master I ask to you the frimware of axio allwinner A13... please....

    ReplyDelete
  15. my allwinner A13 KF206 can finish booting

    ReplyDelete
  16. the phoenix suit stucked at 49% so i close it using task manager.. what to do?? my computer doesn't recognize my tablet.. ASAP

    ReplyDelete
  17. I did this many times and no problem at all, im also trying other OS version im currently using ICS 4.0.4 and im looking for stable jellybean OS version. BTW great tutorial.

    P.S
    For others that has problem flashing their tablet try to change your USB Cord (im using original samsung cord) and after detecting the driver of your tablets just restart your computer then try reFlash your tablet. Check your computer devices if it has a"ADB device etc!" Then your good to flash the tab :)

    ReplyDelete
  18. Hi I did all the steps. but when I clicked run as admin in exe it poped up driver install fail. then exited. any Help is needed bad. my tablet screen and keyboard has gone crazy, I need to flash new rom. thank you

    ReplyDelete
  19. hello i got a problem here when i plug in my tab while livesuit is running the computer detects my tab normally but it plug out automatically then it plug in again but this time the computer detects the tab as a unknown device this time what's the problem plz help

    ReplyDelete
  20. hey i had a tab 64 GB .I rooted it in a wrong way and got my tab bricked.It stops at the samsung logo.I did all the things you did to flash a new firmware but it didn't work.the pop up thing did not work.
    my tab is a duplicate one.so can i flash a new firmware.Someone pls help me

    ReplyDelete
  21. please help me
    i need Aftron(afmid71803g) 8gb 3g Tablet Firmware a088-mainboard-v4.0.0 topwise
    thank u

    ReplyDelete
  22. Plz send me firmware for Grighy G87 A13 model

    ReplyDelete
  23. Plz send me file for Gright GS270-T

    ReplyDelete
  24. I Have a boot loop A13, does not get detected and does not work bruv why?

    ReplyDelete
  25. thanks for this helpful blog.

    ReplyDelete
  26. How to fix livesuit install the driver fail

    https://youtu.be/6VrDZeDG8gQ

    ReplyDelete
